Easily Extract SQL Database to CSV: A Step-by-Step Guide with Navicat Premium
In today’s data-driven world, the ability to migrate information between different systems is crucial. This guide will walk you through the process of extracting data from a SQL database backup into a CSV format, specifically for use in Salesforce. You’ll learn how to leverage the powerful yet user-friendly tool, Navicat Premium, to tackle this common data migration challenge. We’ll cover everything from understanding SQL backups to exporting your data efficiently, ensuring a smooth transition for your Salesforce implementation.
Table of Contents
Video Overview

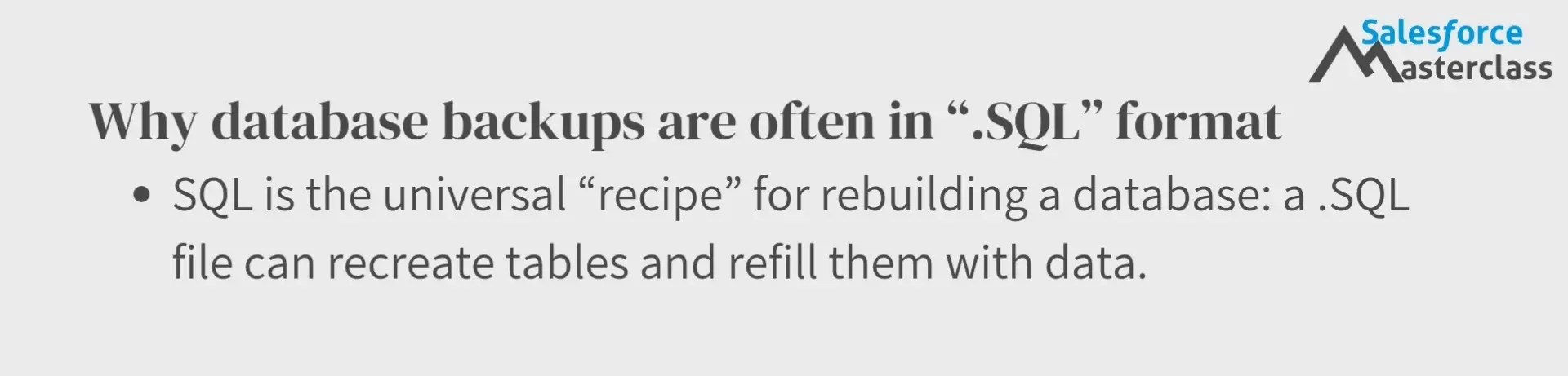

Understanding SQL Database Backups

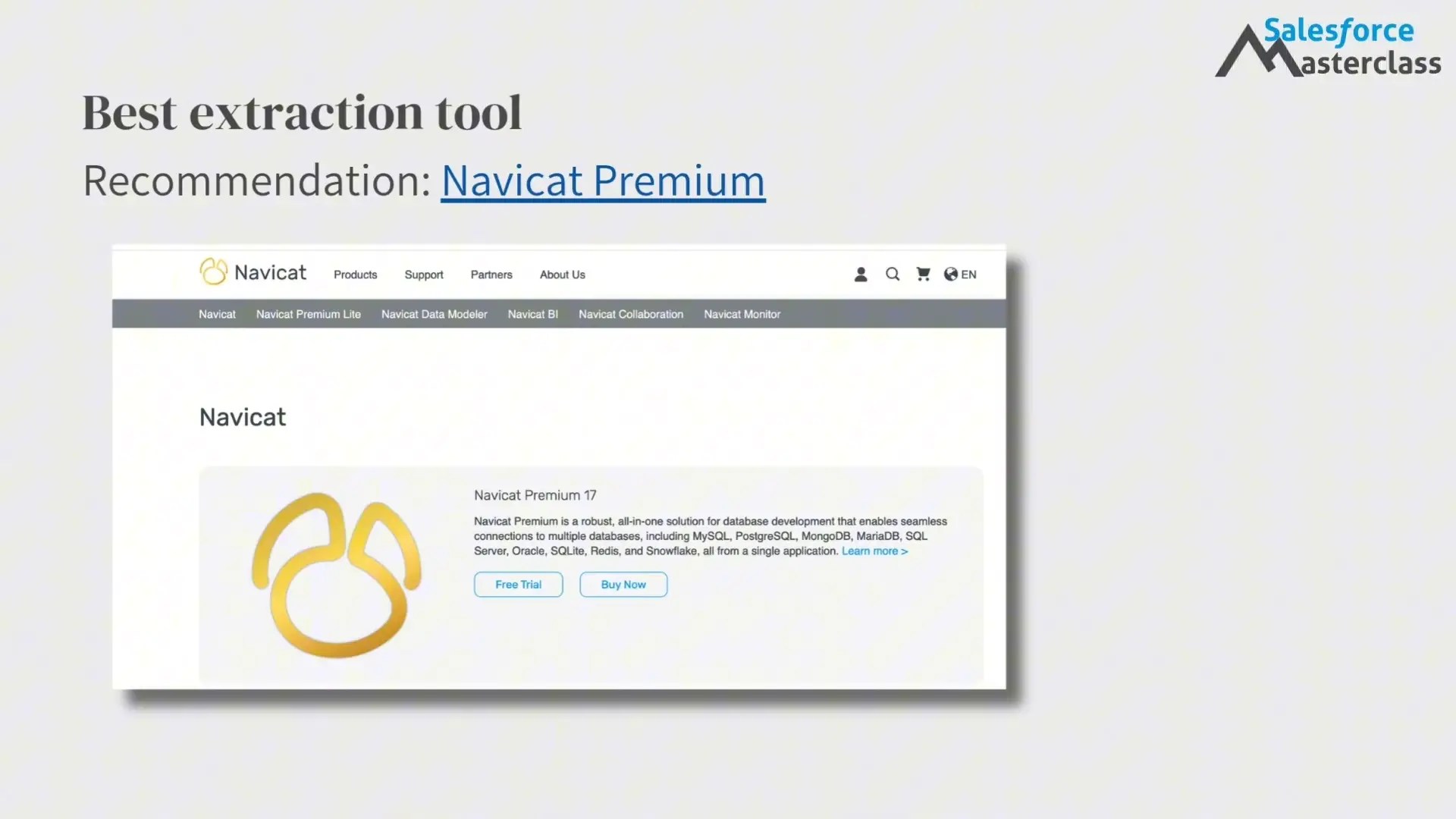

Setting Up Navicat Premium
If you’re working through our Salesforce Data Migration resources, you may also find these guides helpful:
-
- Salesforce Data Migration Resources – Learn the overall migration process and best practices.
- Data Migration Excel Formulas – Useful Excel functions for cleaning and preparing your data before importing into Salesforce.
- How to Import SQL Files with Navicat – Continue learning how to manage SQL files efficiently using Navicat.
- Database Migration Tutorials – Explore additional tutorials related to SQL databases, imports, exports, and migration workflows.
Creating a New Database Connection
3. Enter Connection Details
4. Connection Name: Assign a name for this connection (e.g., “scratch”). This name is arbitrary and doesn’t affect the functionality.
* **Host:** Typically “localhost” if the database is on your local machine.
* **Port:** The default port for MySQL is 3306.
* **User Name:** Enter your database username (e.g., “root”).
* **Password:** Enter your database password. You can choose to save it for future use.
5. Confirm Connection: Click “OK” to create the connection.
Loading the SQL File
- Open the MySQL Database: In the left-hand navigation panel, locate the scratch connection you created earlier. Expand the connection and select mysql,
2. Execute the SQL File: Right-click the mysql database and select Execute SQL File… from the context menu. This opens the import tool, allowing you to load your SQL backup into the temporary database.
3. Select Your SQL Backup File: Right-click the mysql database and select Execute SQL File… from the context menu. This opens the import tool, allowing you to load your SQL backup into the temporary database.
4. Import the SQL File:
The Execute SQL File dialog will appear.
Review the selected file, then click Start to begin importing the database.
Navicat will execute each SQL query and display a progress log as the import runs.
5. Verify the Import:
Wait until the import process finishes successfully. Once complete, review the execution log for any errors or warnings.
If the import completes without errors, you can close the execution window and continue to the next step of your workflow.
Extracting Tables to CSV

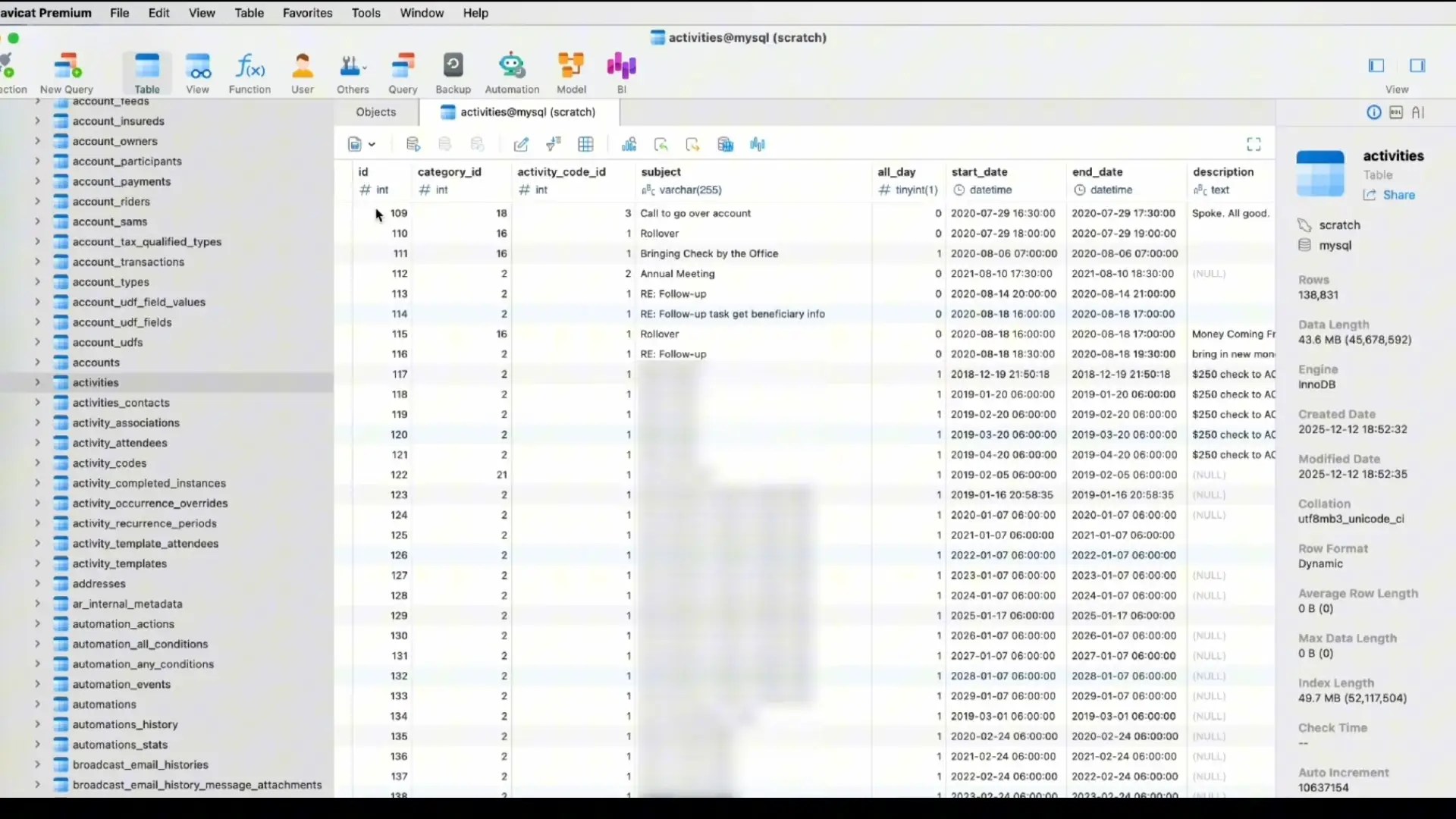

- View the Database Tables: In the left-hand navigation pane, expand your MySQL database and select Tables. This will display all available tables in the database.
2. Open a Table: Click on a table (for example, activities) to preview its structure and data.
3. Open the Export Wizard: Right-click the table you want to export, then select Export Wizard from the context menu.
4. Select the Export Format: In the Export Wizard, choose CSV file (*.csv) as the export format, then click Next.
5. Choose an Export Location:
Select the folder where you want the CSV files to be saved.
If you’d like to create a new folder:
- Click New Folder
- Enter a folder name (for example, Database CSV Exports)
- Click Create
- Select the new folder and click Open
6. Select the Tables to Export:
A list of available tables will be displayed.
- Check the box beside each table you want to export.
- You can select multiple tables to export them all at once.
7. Configure Export Settings:
- Click Next through the remaining wizard screens until you reach the final confirmation page.
- Click Start to begin exporting the selected tables.
8. Export the Tables:
Review the export options before continuing.
Recommended settings:
- Include Column Titles: ✔ Enabled (recommended)
- Date Format: Choose the format that matches your project requirements (for example, MDY – Month/Day/Year).
- Record Delimiter: Leave the default unless a different format is required.
- Text Qualifier: Keep the default setting unless your data requires a different qualifier.
- Time Delimiter: Leave the default unless your project specifies otherwise.
8. Verify the Export:
Review the export options before continuing.
Recommended settings:
- Include Column Titles: ✔ Enabled (recommended)
- Date Format: Choose the format that matches your project requirements (for example, MDY – Month/Day/Year).
- Record Delimiter: Leave the default unless a different format is required.
- Text Qualifier: Keep the default setting unless your data requires a different qualifier.
- Time Delimiter: Leave the default unless your project specifies otherwise.
Tips & Best Practices
- Create a Temporary Database: Always load your SQL backup into a temporary or “scratch” database. This allows you to examine the data without affecting your live database.
- User-Friendly Tools: For users without extensive SQL expertise, tools like Navicat Premium offer a visual interface that simplifies complex database operations.
- Selectivity is Key: Don’t feel obligated to export every table. Choose only the data you need for your Salesforce migration to streamline the process.
- CSV Format: CSV is a widely compatible format that works well with Salesforce’s data import tools.
- Date Format Consistency: Ensure your date formats in Navicat match the expected format for Salesforce to avoid import errors.
Common Mistakes
-
- Trying to Open SQL Directly: A common mistake is attempting to open a .sql file in a text editor expecting to see raw data. Remember, it’s a script.
- Ignoring Temporary Database Step: Skipping the step of loading the SQL file into a temporary database can lead to confusion as you won’t be able to easily view or select specific data.
- Exporting Unnecessary Data: Exporting too much data can slow down your Salesforce import process and potentially lead to data conflicts.
- Incorrect Date Formatting: Mismatched date formats between your exported CSV and Salesforce’s requirements can cause import failures.
Troubleshooting
-
- Connection Errors: If you encounter issues connecting to your database, double-check your host, port, username, and password. Ensure the database server is running.
- SQL Execution Errors: If the SQL file fails to execute, review the error messages in the “Message Log” tab of the “Execute SQL File” window for clues. This might indicate syntax issues in the SQL file or problems with the database schema.
-
- CSV Import Errors in Salesforce: If your CSV files don’t import correctly into Salesforce, verify that the column headers match Salesforce field names and check for any data type mismatches or formatting issues, especially with dates and numbers.
Key Takeaways
-
- SQL database backups are instruction sets, not raw data files.
- Tools like Navicat Premium simplify the process of working with SQL backups.
- Loading the SQL backup into a temporary database is a critical intermediate step.
- You can select specific tables and export them to CSV format for Salesforce migration.
- Pay attention to formatting options like date orders for successful imports.
Frequently Asked Questions
Can I directly import a .sql file into Salesforce?
No, Salesforce does not directly support importing .sql files. You must extract the data into a format like CSV.
What if I don’t have Navicat Premium?
Other database management tools (e.g., DBeaver, SQL Developer) can also be used to load and export data from SQL files. The general principles remain the same.
How do I handle large SQL backup files?
For very large files, ensure your system has sufficient resources (RAM, disk space). You might need to export tables in batches if memory becomes an issue.
What are the common issues when exporting to CSV?
Common issues include incorrect delimiters, text qualifiers, character encoding problems, and date/number formatting discrepancies.
